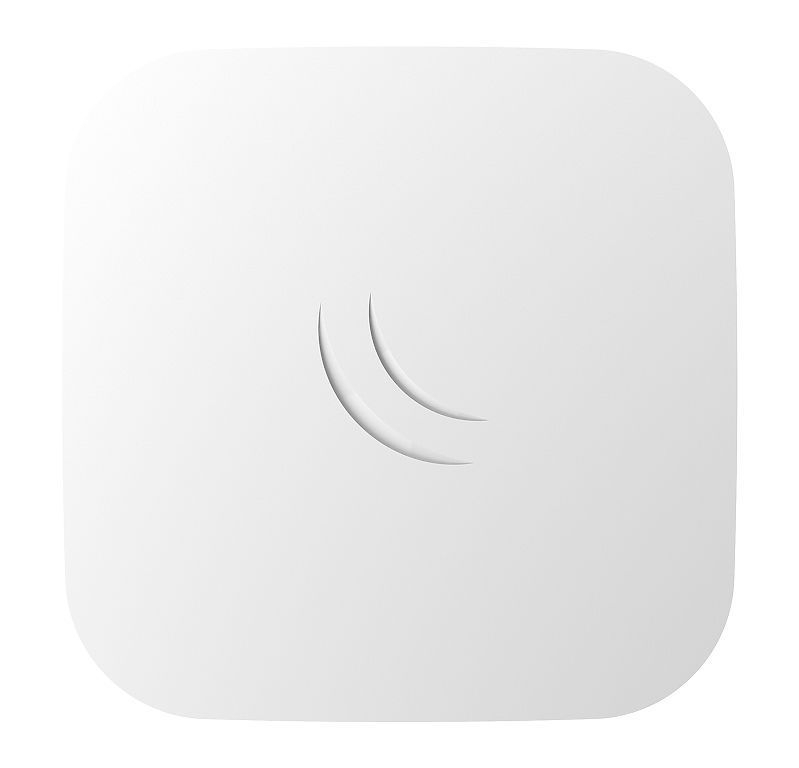

RBCAPGI-5ACD2ND CAP AC 2.4 +5 Ghz
Produktinformationen "RBCAPGI-5ACD2ND CAP AC 2.4 +5 Ghz"
RBCAPGI-5ACD2ND CAP AC 2.4 +5 Ghz AccesPoint
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz

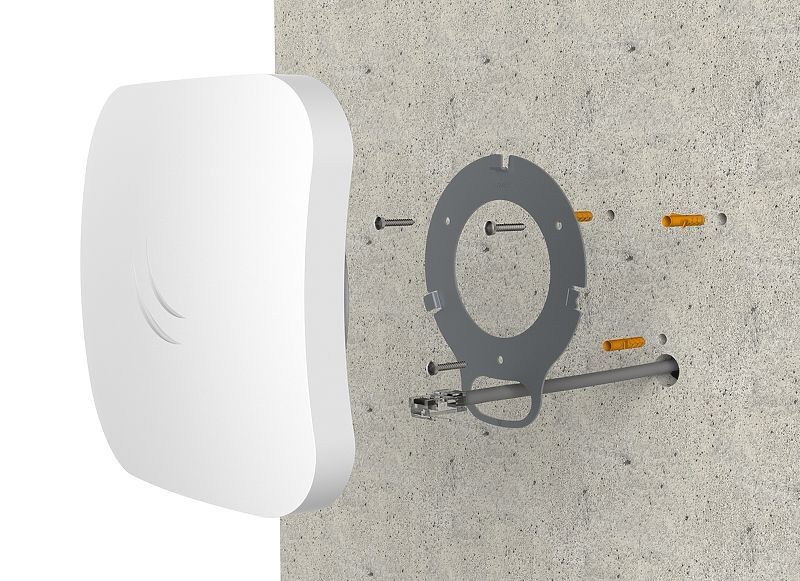

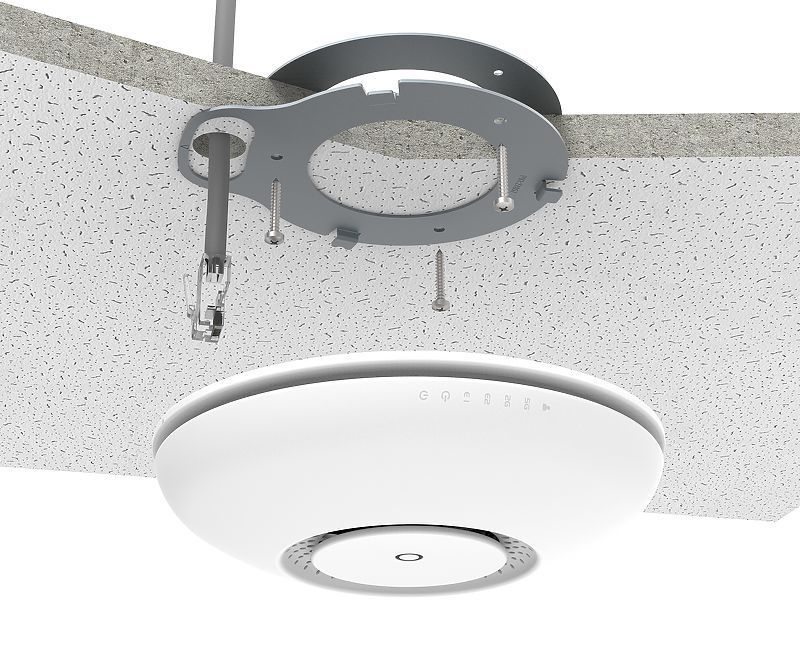

Dimensions Round case: ⌀? 136 mm, height: 30 mm Square case: 145 mm x 145 mm x 30 mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 50°C
PoE in 802.3af/at
PoE in input Voltage 17-57 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 24 W
Max power consumption without attachments 13 W
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input < 30 V) 500 mA
Max out per port output (input > 30 V) 400 mA
Max total out (A) 500 mA
AC speed AC1200
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
10/100/1000 Ethernet ports 2
