Specifications

Product code

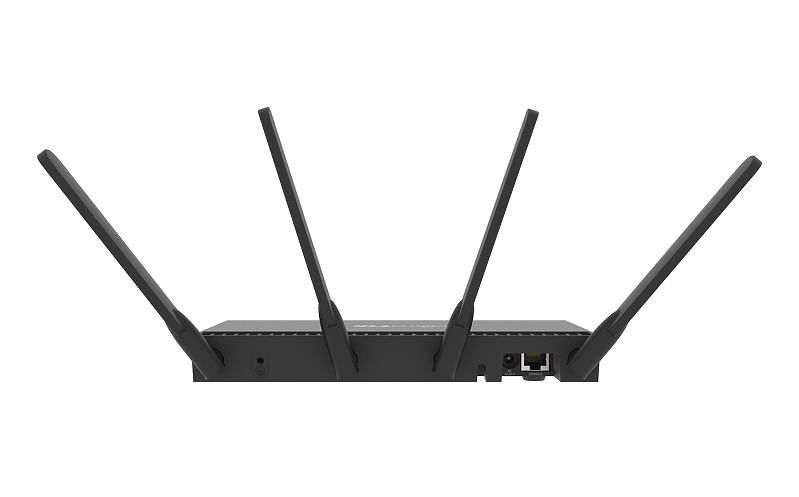

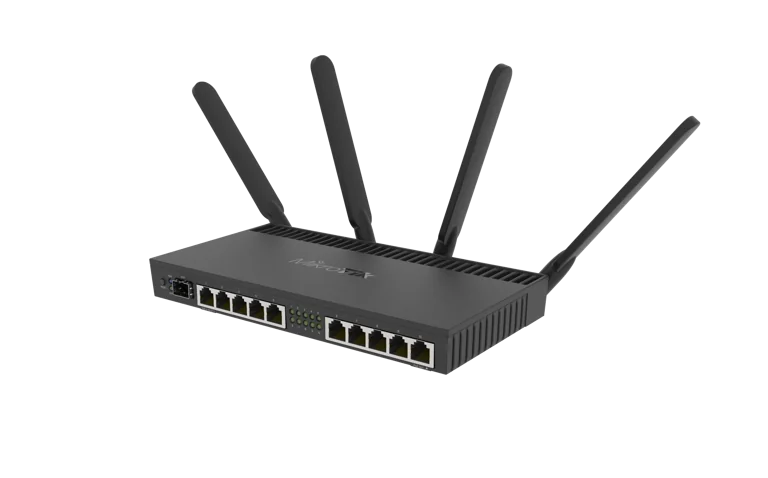

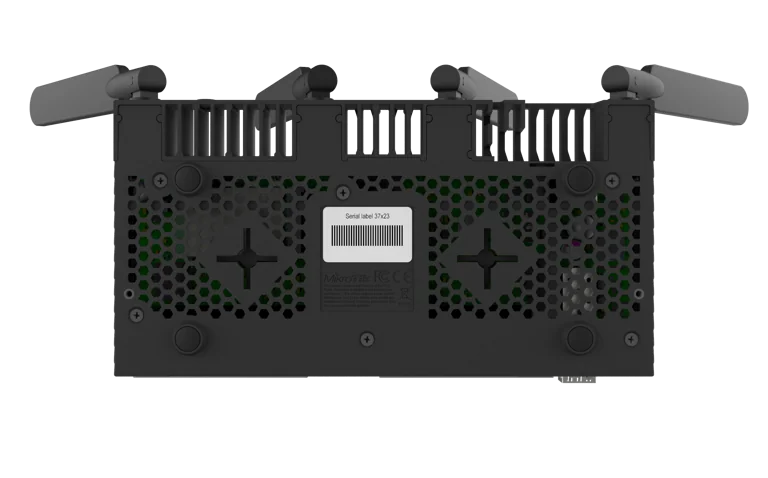

RB4011iGS+5HacQ2HnD-IN

Suggested price

$275.00

Architecture

ARM 32bit

CPU

AL21400

CPU core count

4

CPU nominal frequency

auto (533 - 1900) MHz

CPU Threads count

4

Switch chip model

RTL8367SB

Dimensions

228 x 120 x 30 mm

RouterOS license

5

Operating System

RouterOS v7

Size of RAM

1 GB

Storage size

512 MB

Storage type

NAND

MTBF

Approximately 200'000 hours at 25C

Tested ambient temperature

-40°C to 45°C

Wireless capabilities

Wireless 5 GHz Max data rate

1733 Mbit/s

Wireless 5 GHz Number of chains

4

Wireless 5 GHz standards

802.11a/n/ac

Antenna gain dBi for 5 GHz

3

Wireless 5 GHz chip model

QCA9984

Wireless 5 GHz generation

Wi-Fi 5

Wireless 2.4 GHz Max data rate

300 Mbit/s

Wireless 2.4 GHz Number of chains

2

Wireless 2.4 GHz standards

802.11b/g/n

Antenna gain dBi for 2.4 GHz

3

Wireless 2.4 GHz chip model

R11e-2HnD

Wireless 2.4 GHz generation

Wi-Fi 4

WiFi speed

AC2000

Ethernet

10/100/1000 Ethernet ports

10

Fiber

SFP+ ports

1

Peripherals

MiniPCI-e slots

1

Serial console port

RJ45

Powering

Number of DC inputs

2 (DC jack, PoE-IN)

DC jack input Voltage

12-57 V

Max power consumption

44 W

Max power consumption without attachments

23 W

PoE in

Passive PoE

Cooling type

Passive

PoE in input Voltage

18-57 V

PoE-out

PoE-out ports

Ether10

PoE out

Passive PoE up to 57V

Low voltage PoE-Out current limit

600 mA

High voltage PoE-Out current limit

420 mA

Max total out (A)

600 mA

Certification & Approvals

Certification

CE, FCC, IC, EAC, ROHS

IP

IP20

Other

PCB temperature monitor

Yes

Voltage Monitor

Yes
