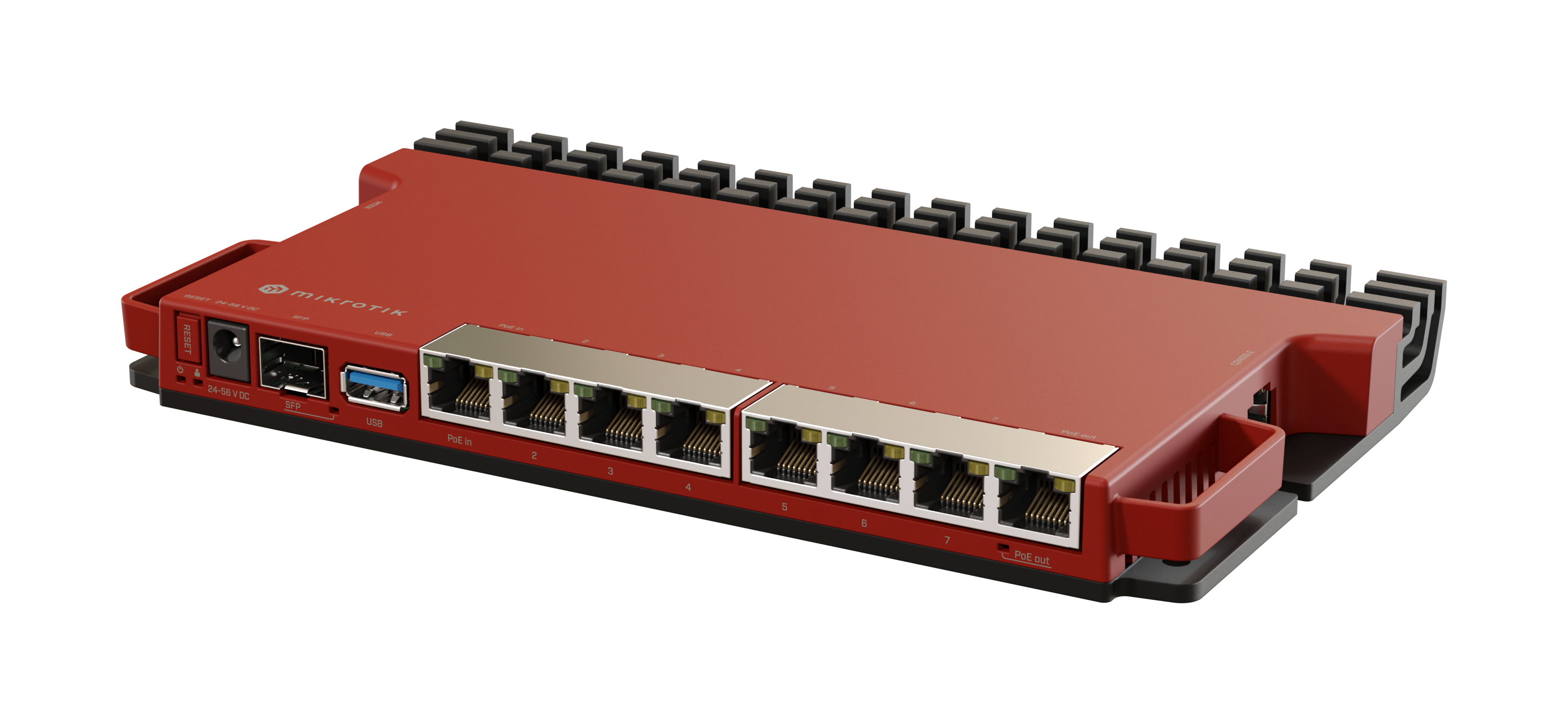

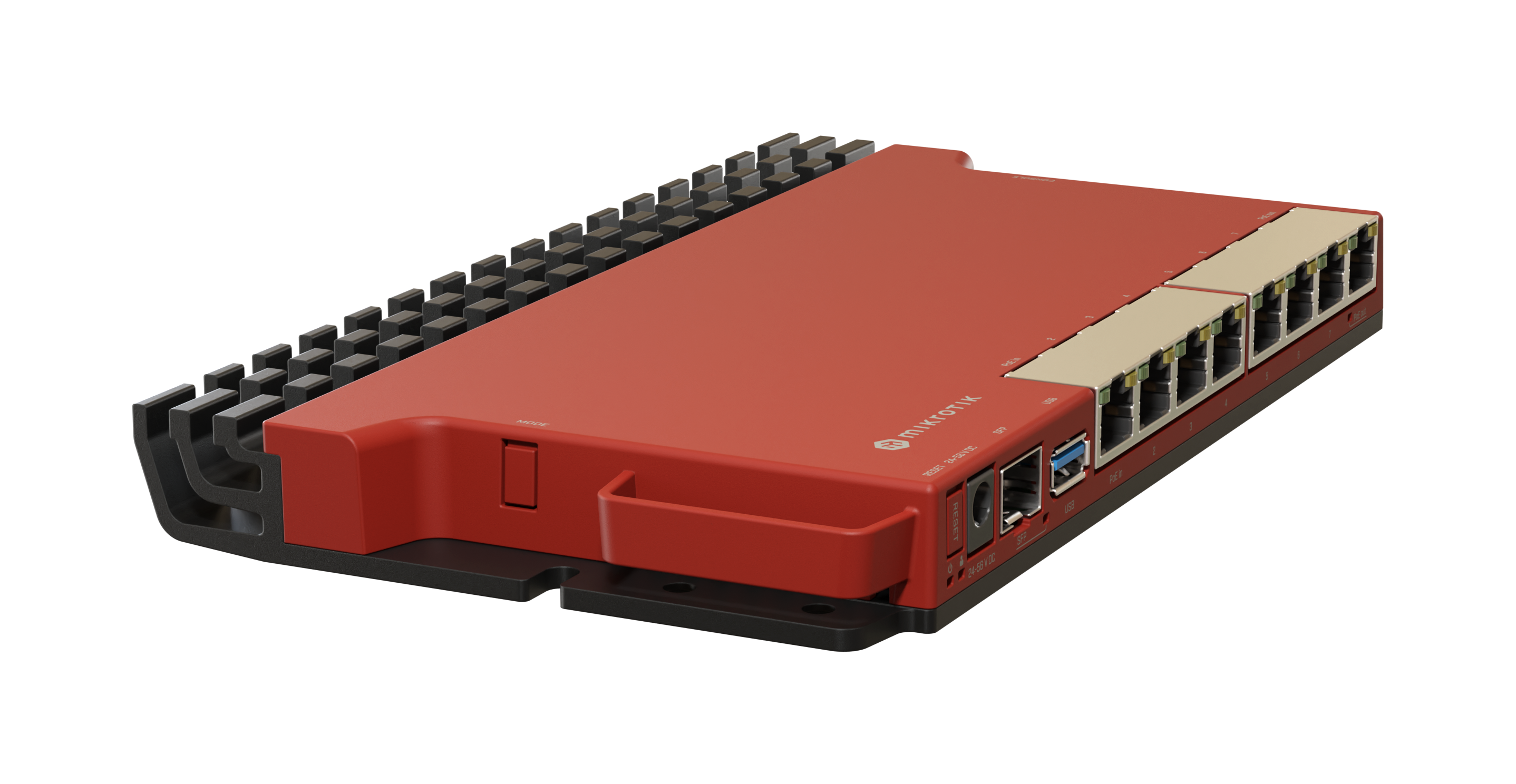

MikroTik RouterBOARD L009UiGS, 8x Gigabit, 1x 2.5G
Produktinformationen "MikroTik RouterBOARD L009UiGS, 8x Gigabit, 1x 2.5G"

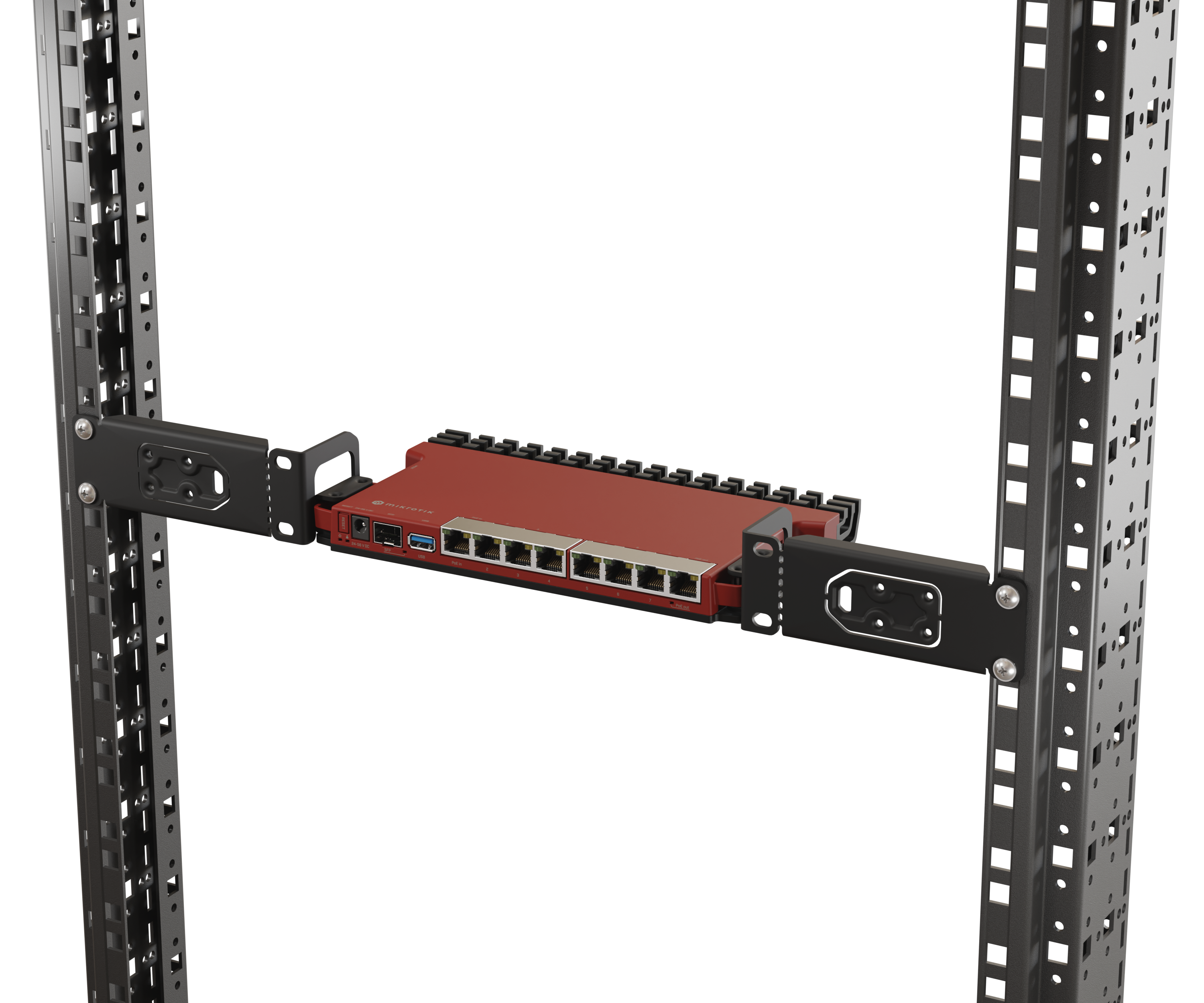

L009UiGS with dual core 800MHz CPU, 512MB RAM, 8 x Gbit LAN, 1 x 2.5 Gbit SFP port, USB, desktop/1U rackmount case, PSU, K-79 rackmount kit, RouterOS L5
Details
Product code L009UiGS-RM
Architecture ARM 64bit
CPU IPQ-5018
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 88E6190
RouterOS license 5
Operating System RouterOS v7
Size of RAM 512 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $119.00
Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 24-56 V
Max power consumption 40 W
Max power consumption without attachments 8 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-56 V
PoE-out
Details
PoE-out ports Ether8
PoE out Passive PoE
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 1 A
Ethernet
Details
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 1
Fiber
Details
SFP ports 1 (2.5G supported)
Peripherals
Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5
Other
Details
Mode button Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 20
