CAP Lite
Produktinformationen "CAP Lite"
Low-cost dual-chain 2.4GHz AP with wall and ceiling enclosure
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz

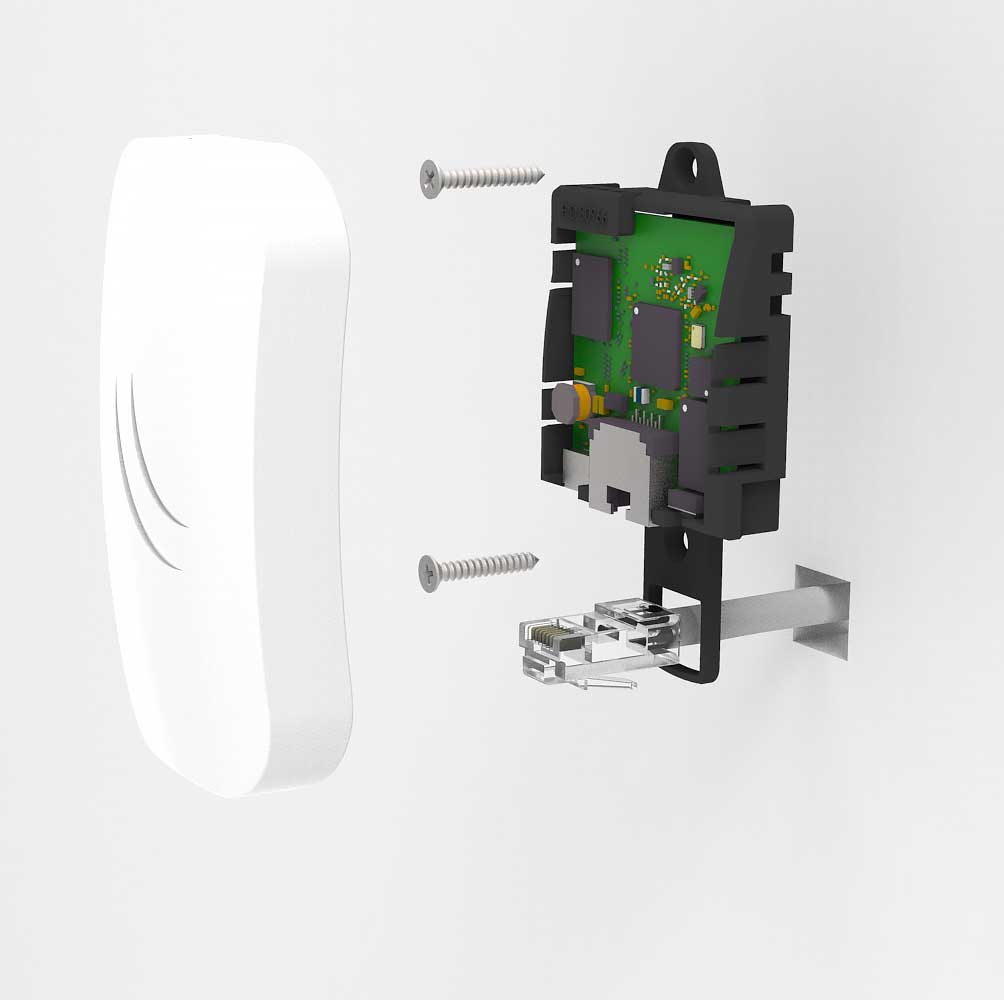

Dimensions Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $29.00
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9533
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Peripherals
Details
Number of USB ports 1
USB slot type microUSB type AB
Max USB current (A) 1
Powering
Details
MicroUSB input Voltage 5-5 V
Number of DC inputs 2 (PoE-IN, MicroUSB)
Max power consumption 4 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 10-60 V
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
