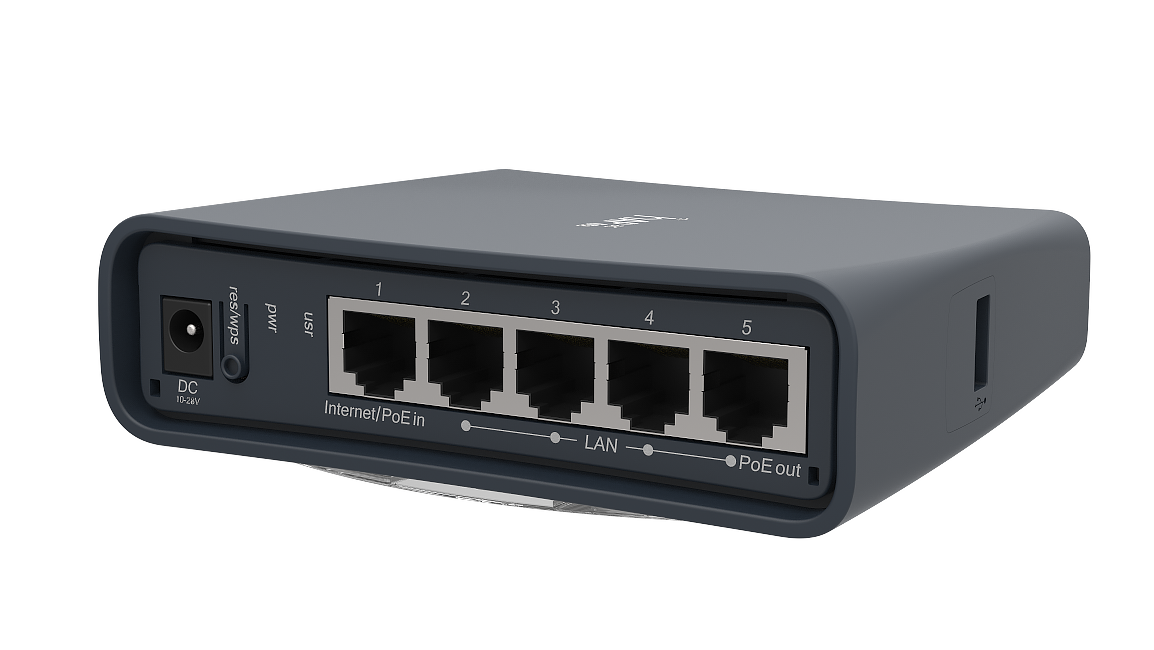

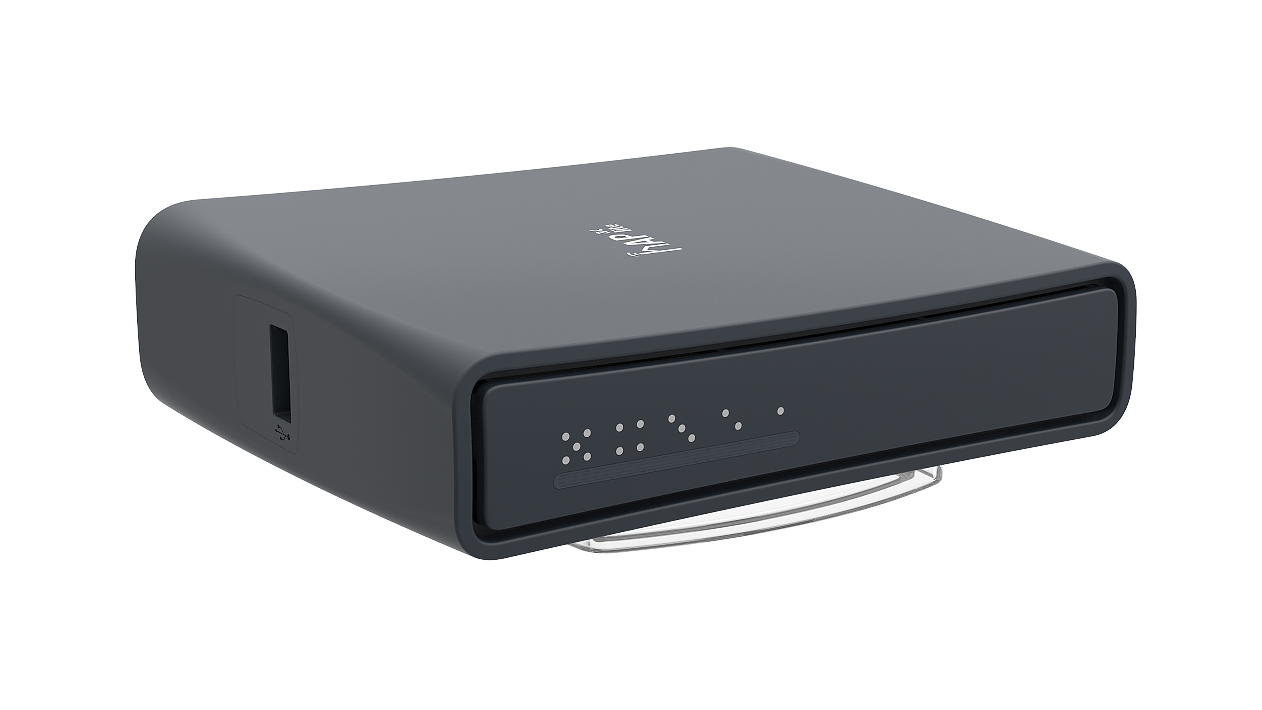

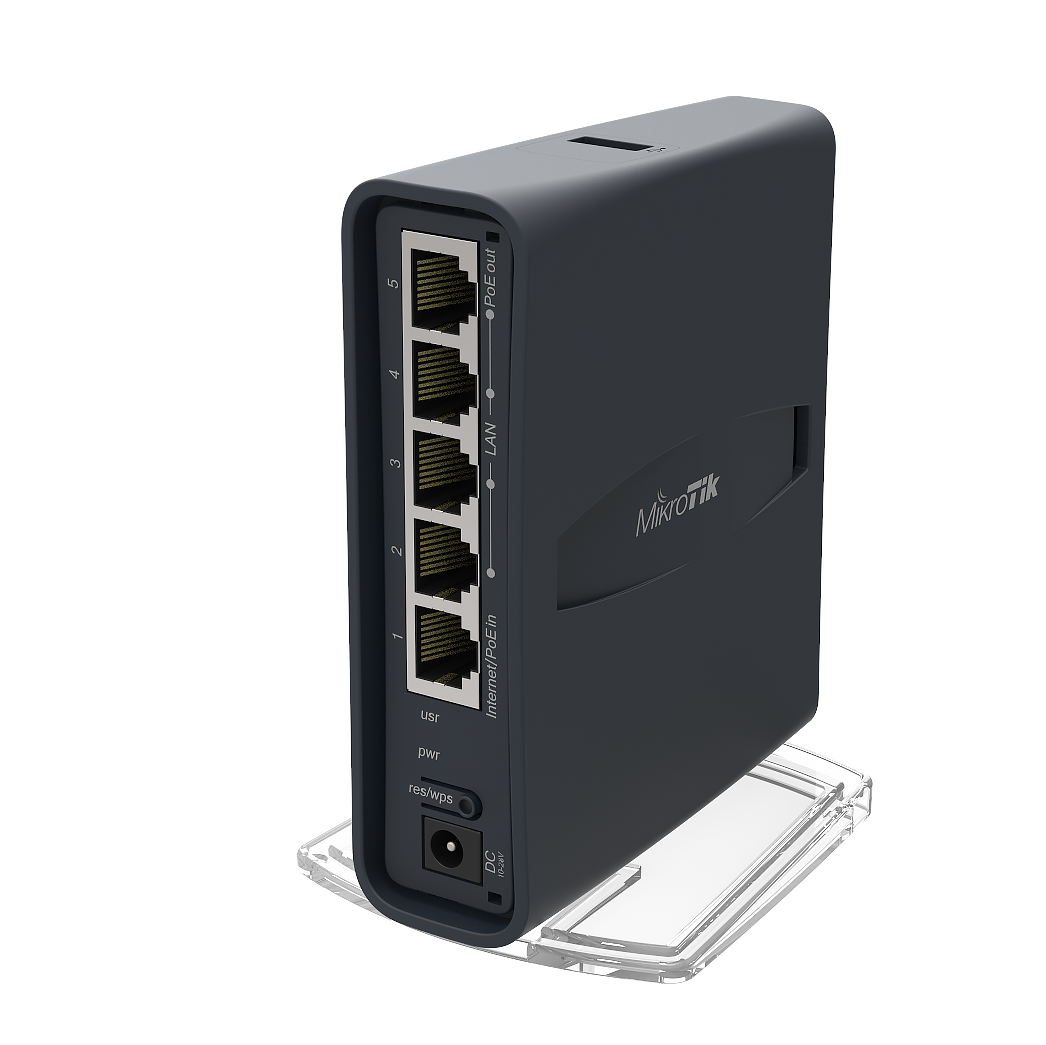

AP ac lite TC
Produktinformationen "AP ac lite TC"
The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.
Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.
Product code RB952Ui-5ac2nD-TC
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 34 x 119 x 98mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -30°C to 70°C
Suggested price $49.95
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 433 Mbit/s
Wireless 5 GHz number of chains 1
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2
Wireless 5 GHz chip model QCA9887
Wireless 5 GHz generation Wi-Fi 5
AC speed AC750
Ethernet
Details
10/100 Ethernet ports 5
Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-28 V
Max power consumption 20 W
Max power consumption without attachments 8 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-28 V
PoE-out
Details
PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 500 mA
Max total out (A) 500 mA
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 23 -93
54MBit/s 20 -75
MCS0 23 -93
MCS7 19 -71
MCS9 16 -63
